Product Short information

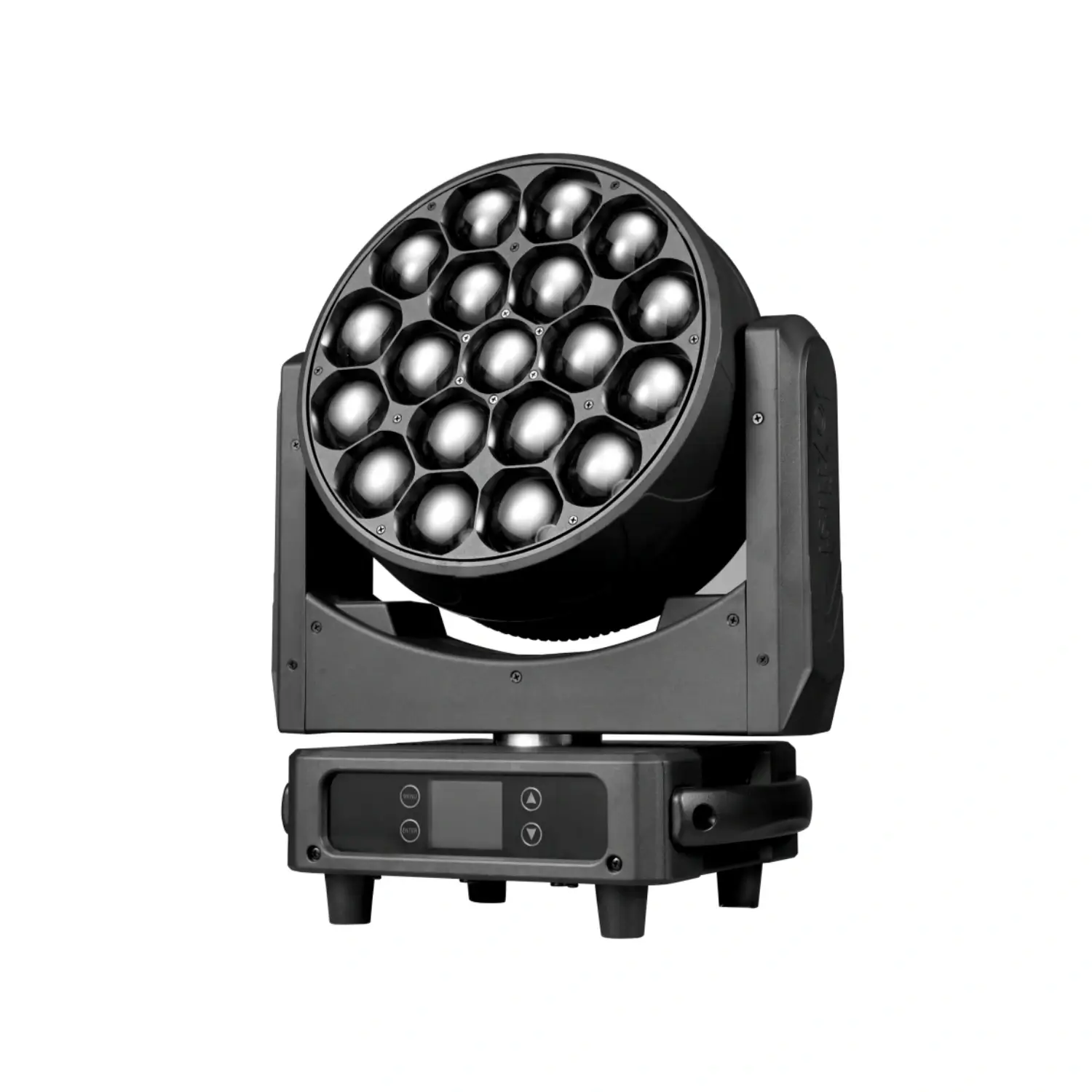

Mini 19x40W RGBW Moving Head: 6-60°zoom, 540°/270° movement, CTO(2500K-8K), DMX/RDM, – stages/architecture.
Technical Specifications
Power Voltage: 110-240V~50/60Hz
Power Consumption: 800W
Light Source: 19x40W RGBW LED
Color Temperature: 7000K
Beam Angle:6°-60°
Pan Movement: 540°
Tilt Movement: 270°
0%~100% variable dimming, multi-speed strobe effect
Control Channels: 10, 15, 21, 25, 37, 37+
Protocols: DMX512, Master slave, Sound Active, RDM
Software upgrade: Upgrade the firmware via DMX link
Display: LED 2.4G color screen + 4 touch buttons selection menu
Data In/Out: 3-pin or 5-pin XLR
Power In/Out:
Power Connector in/out
Ingress protection: IP20
Electronic linear zoom system
CTO: 2500K-8000K
Product Size: 370x292x410mm
Package Size: 490x350x620mm
Weight: 19kg
Power Consumption: 800W
Light Source: 19x40W RGBW LED
Color Temperature: 7000K
Beam Angle:6°-60°
Pan Movement: 540°
Tilt Movement: 270°
0%~100% variable dimming, multi-speed strobe effect
Control Channels: 10, 15, 21, 25, 37, 37+
Protocols: DMX512, Master slave, Sound Active, RDM
Software upgrade: Upgrade the firmware via DMX link
Display: LED 2.4G color screen + 4 touch buttons selection menu
Data In/Out: 3-pin or 5-pin XLR
Power In/Out:
Power Connector in/out
Ingress protection: IP20
Electronic linear zoom system
CTO: 2500K-8000K
Product Size: 370x292x410mm
Package Size: 490x350x620mm
Weight: 19kg
