Product Short information

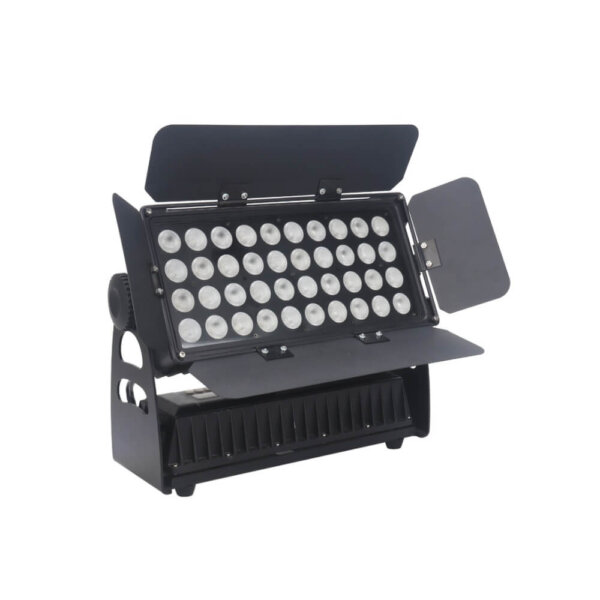

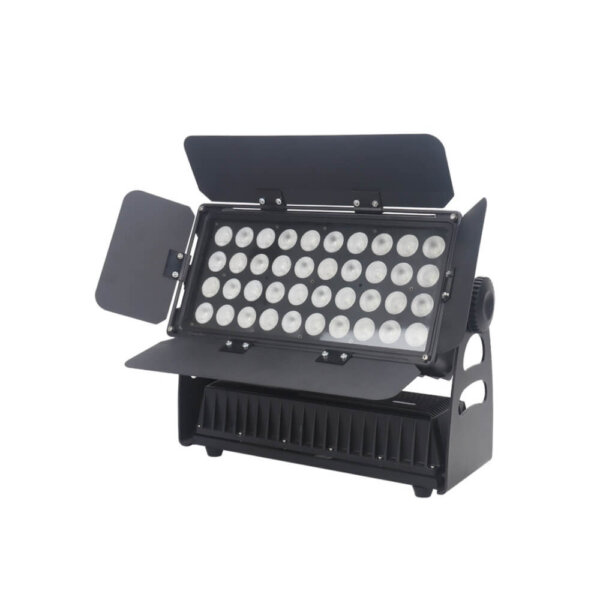

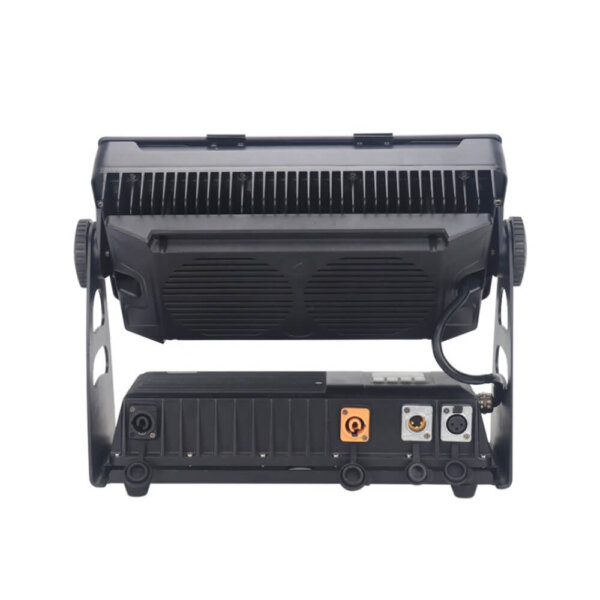

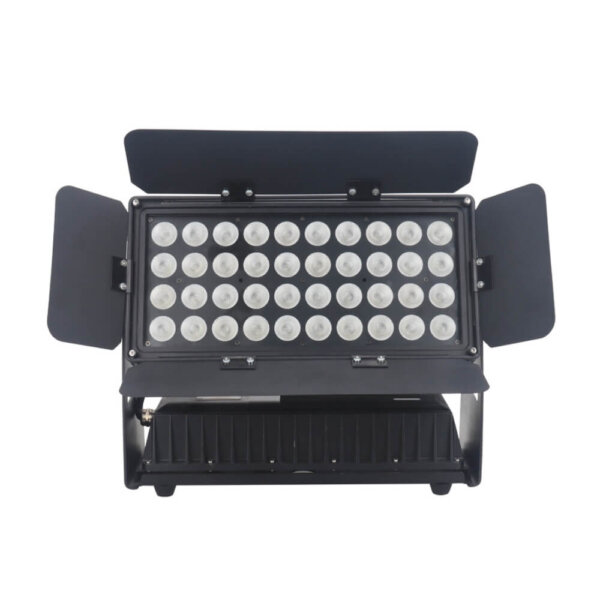

LED 40*10W RGBW Wall Washer Outdoor Mix Colors Wash Light
DMX512 Channel
| order number | function | explain |
| Channel 1 | Total dimming | (0-255) R, G, B, W total dimming, linear dimming, from dark to bright |
| Channel 2 | Total frequency flash | (0-255) R, G, B, W, from slow to fast |
| Channel 3 | R aiming | R dimming, (0-255) Linear dimming, from dark to bright |
| Channel 4 | G aiming | G dimming, (0-255) Linear dimming, from dark to bright |
| Channel 5 | B aiming | B dimming, (0-255) Linear dimming, from dark to bright |
| Channel 6 | W aiming | W dimming, (0-255) Linear dimming, from dark to bright |
| Channel 7 | shade selection | The combination of colors. |
| Channel 8 | macro | (0-10) Top 7 channel enabled; (11-120) jump; (121-180): gradient; (181-244): jump, gradient; (245-255) voice control |
| Channel 9 | Â Macro function speed | 0-255 Slow speed, 0 fastest speed. |
Light Effect
Accessories
Power Cable *1, DMX Cable *1, Quick Lock *1, Manual *1, Safety Cable *1
