Laser Lights

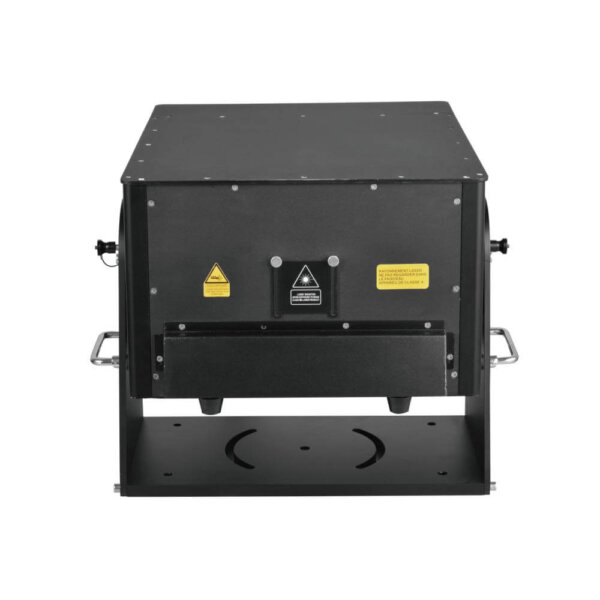

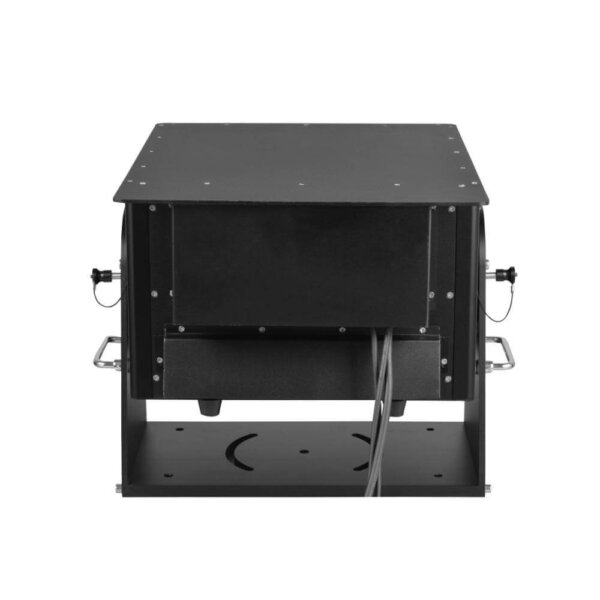

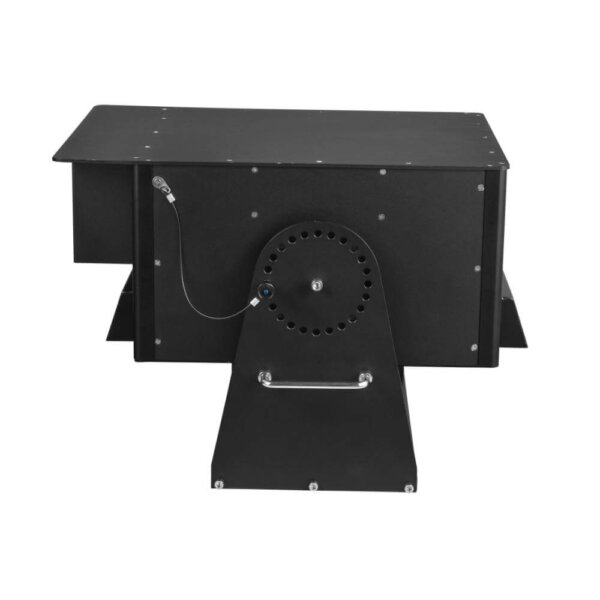

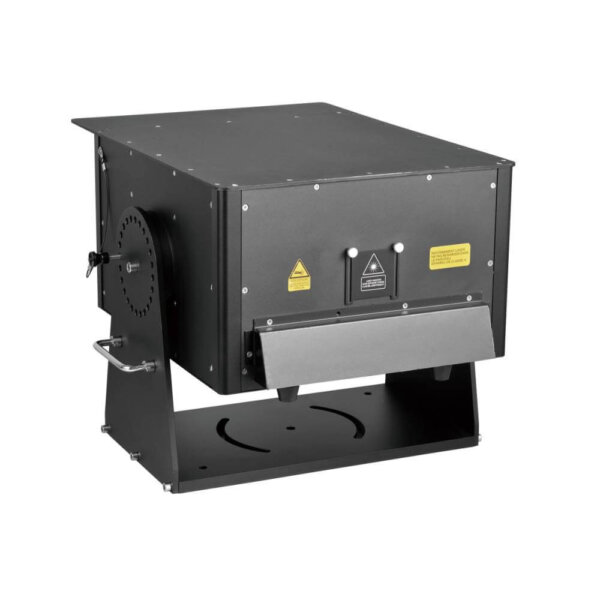

Joyfirst Outdoor Waterproof Full Color Animation RGB 20W Laser Light

Laser light source: semiconductor pump laser
Laser system: high-speed galvanometer scanning system DT50
Applicable places: large bars, performances, water curtain laser show, light show, scenic laser lighting, outdoor laser landmarks, etc.


JT-LS540 15W-RGB15000
JT-LS540 20W-RGB20000
Get A Quote
Please fill in your country or region so that a suitable business manager can contact you.
Quote / Inquiry / ask for assistance
Contact Us
1. Please abide by local laws and regulations when using stage laser lights.
2. The stage laser lights must be operated in strict accordance with the specifications of the operation manual.
3. Do not expose laser lamps to crowds, vehicles, flammable and explosive items, etc. And remind the audience at the performance site: do not look directly at the light source, so as not to damage eyesight; do not use mobile phones, cameras, etc. to shoot at the light source, so as not to damage the sensor of the device.

Joyfirst Lights. Waterproof  RGB Full Color Animation Laser Light For performances, water curtain laser show, light show, scenic laser lighting, outdoor laser landmarks.


Technical Parameters

Rated voltage: AC100V~230V 50~60Hz±10%
Rated power: 500W
Laser light source: semiconductor pump laser
Laser modulation: TTL or analog modulation
Laser wavelength: 520nm & 638nm & 450nm
Laser power: 20W (Red 6W, Green light 6W, Blue 8W)
Laser color: full color
Laser system: high-speed galvanometer scanning system DT50
Laser effect: Laser full-color lines, three-dimensional line effects, computer software control, sound and light synchronization (laser software control), computer animation, text, lines
Control mode: DMX512, master-slave effect, ILDA standard computer software interface
DMX channel: 12+21
Use environment: indoor and outdoor
Laser range: about 2Km
Applicable places: large bars, performances, water curtain laser show, light show, scenic laser lighting, outdoor laser landmarks, etc.
Working temperature: -20°C~45°C
