Product Short information

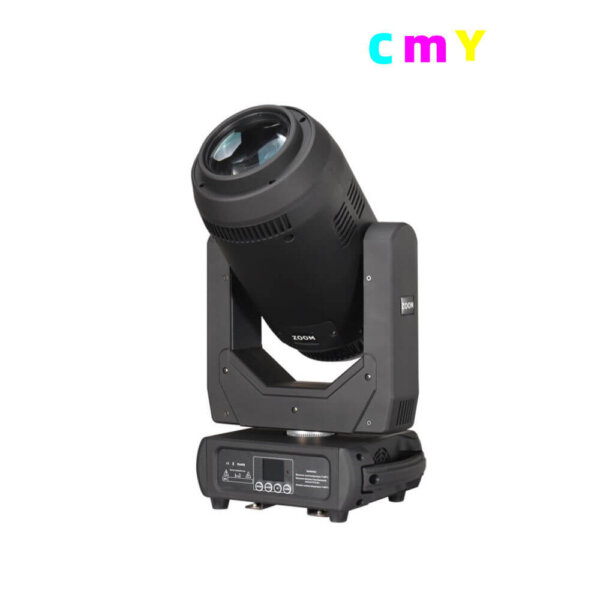

Led 350w Hybrid Beam Spot Wash Stage Light with CMY for Disco DJ Bar
Technical Specifications
Electrical parameters:Voltage: 100V~240V AC, 50/60Hz
Power: 450W @ 220V
Power factor: PF>0.9
Â
Light source specification:
Light source:350W high brightness LED
Color temperature:7500K-8000K
Life time:50000 hours
Â
colour:
1 color wheel: 7 colors + white
Variable speed bidirectional with rainbow effect
Step/Linear conversion color optional
With CMY function, color can be adjusted;
Can be mixed to make the color richer.
Â
Rotation gobo wheel:
1 rotating gobo wheel: 7 gobos + white
The pattern plate adopts a detachable design, which is more convenient to replace the pattern plate
Â
Prism:
5-facet prism, can be rotated in both directions
Â
Focus:
DMX linear focus adjustment, super smooth focus adjustment.
Â
Strobe/Dimming:
Electronic strobe, 0.3-25 times/second,linear dimming
Â
Atomization:
Independent atomized lens, softer light
Â
Rotation angle:
Use three-phase stepping motor, fast, quiet, with automatic return function.
Horizontal:540°
vertical: 270°
Â
Beam Angle:
8-35°
DMX linear amplification, the beam angle can be freely switched from 8 to 35 degrees
Â
Control mode:
DMX512 signal, 3-pin + 5-pin
20CHÂ channel mode
Â
Other functions:
Horizontal and vertical speed adjustable
Use powerful silent fan, LED temperature display, reduce power due to overheating, and ensure LED lifetime
Modular structure for easy maintenance
Â
Housing material/protection level:
High temperature/UV light resistant engineering plastic
Protection grade: IP20
Â
weight:
Net weight: 16kg
Gross weight: 19kg
Â
packing size:Â (mm)
390(L)*31(W)*710(H)
Â
Working temperature:
Maximum ambient temperature 50°C
Power: 450W @ 220V
Power factor: PF>0.9
Â
Light source specification:
Light source:350W high brightness LED
Color temperature:7500K-8000K
Life time:50000 hours
Â
colour:
1 color wheel: 7 colors + white
Variable speed bidirectional with rainbow effect
Step/Linear conversion color optional
With CMY function, color can be adjusted;
Can be mixed to make the color richer.
Â
Rotation gobo wheel:
1 rotating gobo wheel: 7 gobos + white
The pattern plate adopts a detachable design, which is more convenient to replace the pattern plate
Â
Prism:
5-facet prism, can be rotated in both directions
Â
Focus:
DMX linear focus adjustment, super smooth focus adjustment.
Â
Strobe/Dimming:
Electronic strobe, 0.3-25 times/second,linear dimming
Â
Atomization:
Independent atomized lens, softer light
Â
Rotation angle:
Use three-phase stepping motor, fast, quiet, with automatic return function.
Horizontal:540°
vertical: 270°
Â
Beam Angle:
8-35°
DMX linear amplification, the beam angle can be freely switched from 8 to 35 degrees
Â
Control mode:
DMX512 signal, 3-pin + 5-pin
20CHÂ channel mode
Â
Other functions:
Horizontal and vertical speed adjustable
Use powerful silent fan, LED temperature display, reduce power due to overheating, and ensure LED lifetime
Modular structure for easy maintenance
Â
Housing material/protection level:
High temperature/UV light resistant engineering plastic
Protection grade: IP20
Â
weight:
Net weight: 16kg
Gross weight: 19kg
Â
packing size:Â (mm)
390(L)*31(W)*710(H)
Â
Working temperature:
Maximum ambient temperature 50°C
Photometric DATA
Accessories

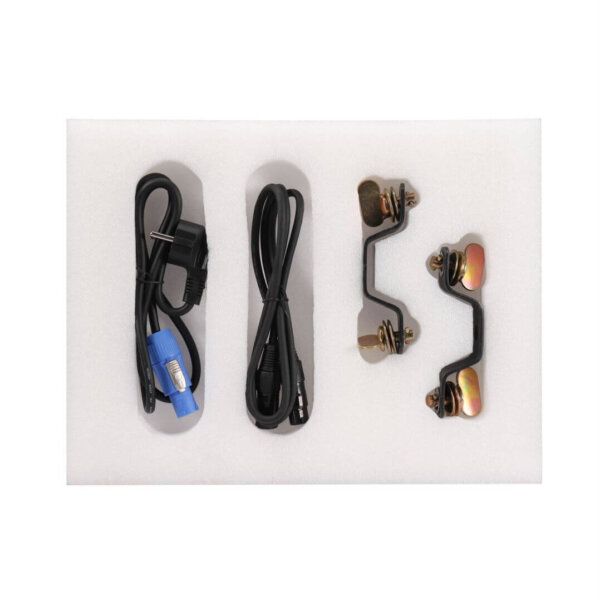

Power Cable *1,DMX Cable *1, Quick Lock *1, Manual *1, Safety Cable *1
