Product Short information

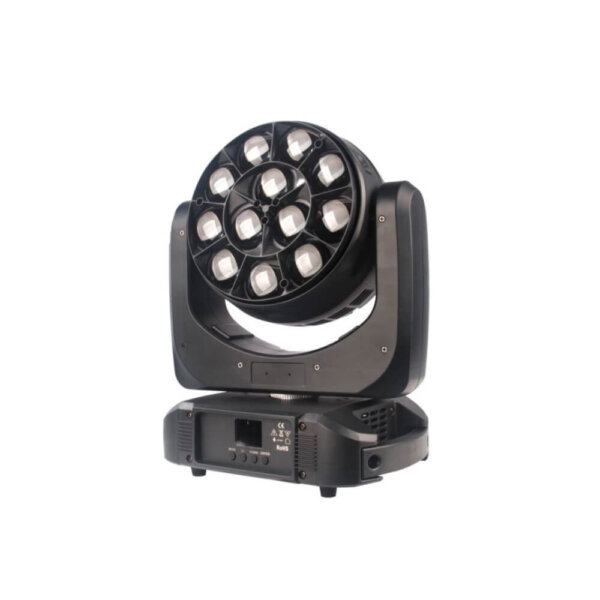

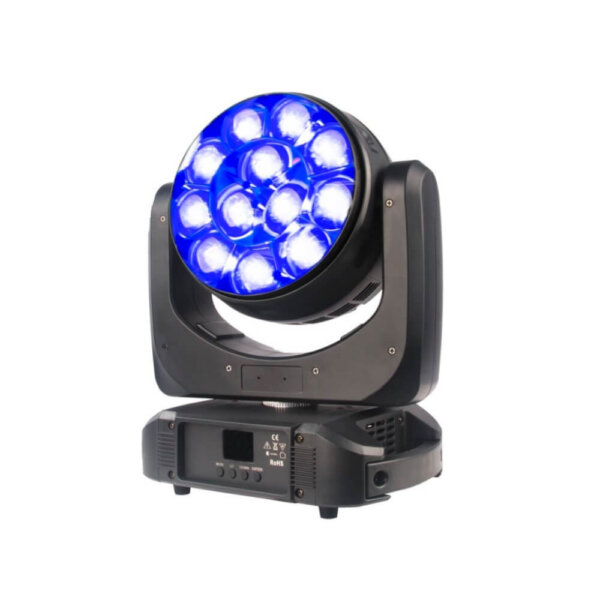

LED 12*40W Wash Zoom Beam Moving Head Lights, Excellent color macro effect.
Technical Specifications
Light Sources: 12*40W 4in1 RGBW LED
Beam Angle: 3.5°~ 45°
Power Consumption: 380W
Power Voltage: AC 100-240V, 50/60Hz
Dimension: 324x240x377mm
Net Weight: 9Kgs
Packing size: 400x310x430mm
ControlÂ
DMX Channel: 16/21 Channel
Control Modes: DMX512/mater-Slave/Auto Run/Music
Pan/TiltÂ
Pan/Tilt: 540°or 360°in optional / 270°
Pan/Tilt Resolution: 8/16 bit
ConstructionÂ
Display:1.8 TFT colorful Display

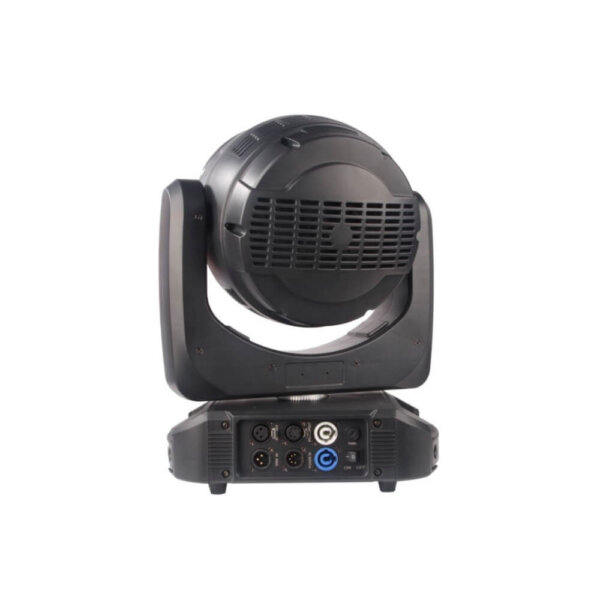

Data In/Out socket: 3-pin & 5-pin XLR sockets
Power Socket: PowerCon in/out
Protection Rating: IP20
FeaturesÂ
Motorized liner zoom system, zoom range: 3.5°~45°Â
Outstanding color macro effectÂ
Dimmer: 0~100% smooth dimmingÂ
Variable strobe effectsÂ
Fast, quiet operation and flicker freeÂ
Beam Angle: 3.5°~ 45°
Power Consumption: 380W
Power Voltage: AC 100-240V, 50/60Hz
Dimension: 324x240x377mm
Net Weight: 9Kgs
Packing size: 400x310x430mm
ControlÂ
DMX Channel: 16/21 Channel
Control Modes: DMX512/mater-Slave/Auto Run/Music
Pan/TiltÂ
Pan/Tilt: 540°or 360°in optional / 270°
Pan/Tilt Resolution: 8/16 bit
ConstructionÂ
Display:1.8 TFT colorful Display
Data In/Out socket: 3-pin & 5-pin XLR sockets
Power Socket: PowerCon in/out
Protection Rating: IP20
FeaturesÂ
Motorized liner zoom system, zoom range: 3.5°~45°Â
Outstanding color macro effectÂ
Dimmer: 0~100% smooth dimmingÂ
Variable strobe effectsÂ
Fast, quiet operation and flicker freeÂ
Appearance Parameters
Light Effect
Accessories
Power Cable *1, DMX Cable *1, Quick Lock *1, Manual *1, Safety Cable *1
Exhibition

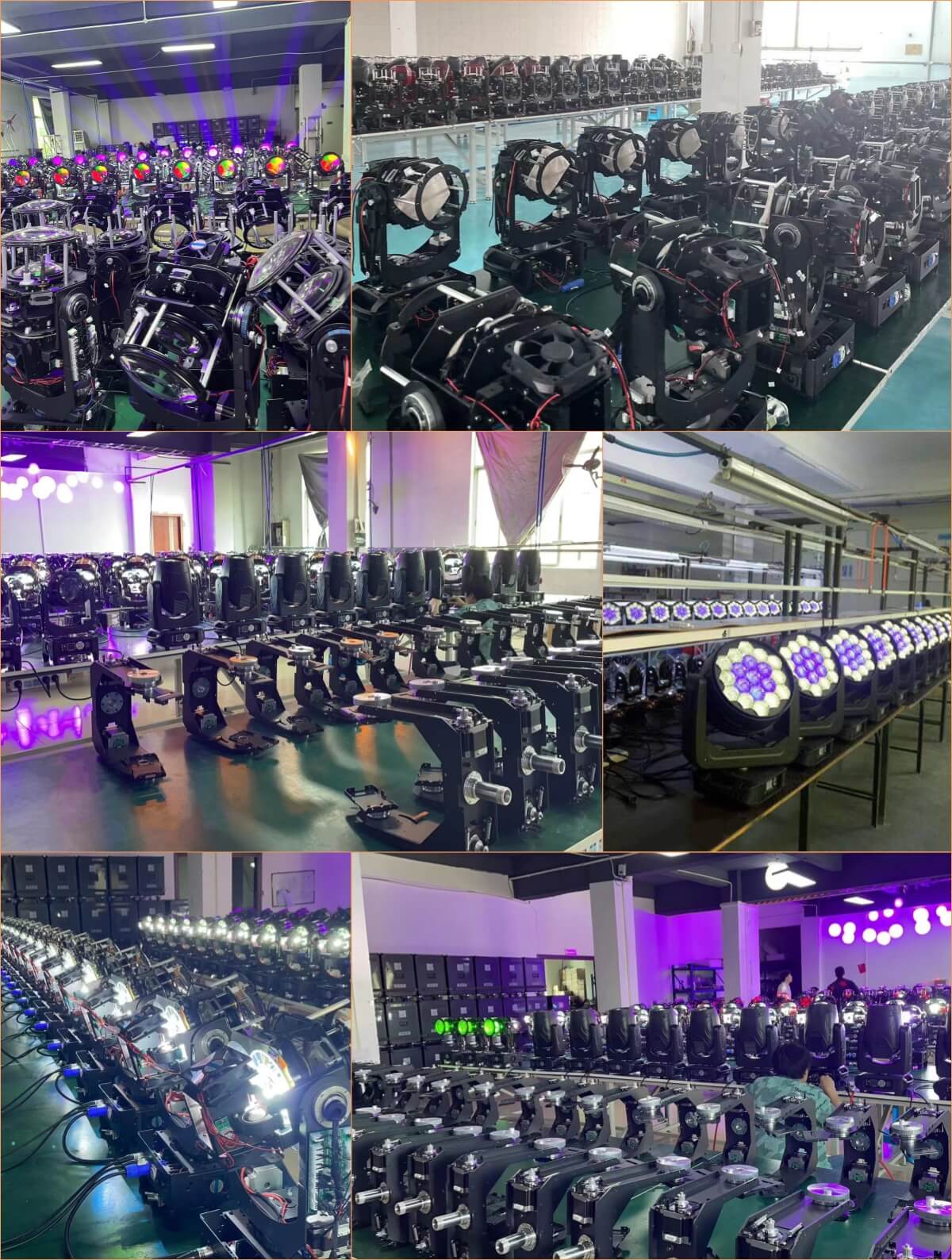

Lighting Factory
