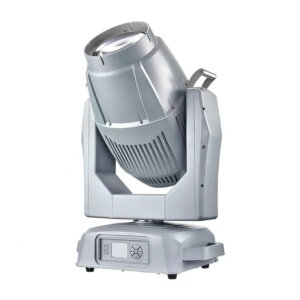

The upgraded product of Moving Head Beam 7R.
Lamp: Roccer R7 230W(WITH OSRAM BURNER)
Channel mode: 18 DMX512 Channel
Pan scan: 540°(16bit) Electric correction
Tilt scan: 270° (16bit) Electric correction
Amazing dot matrix, four tact switch, 180° turning show

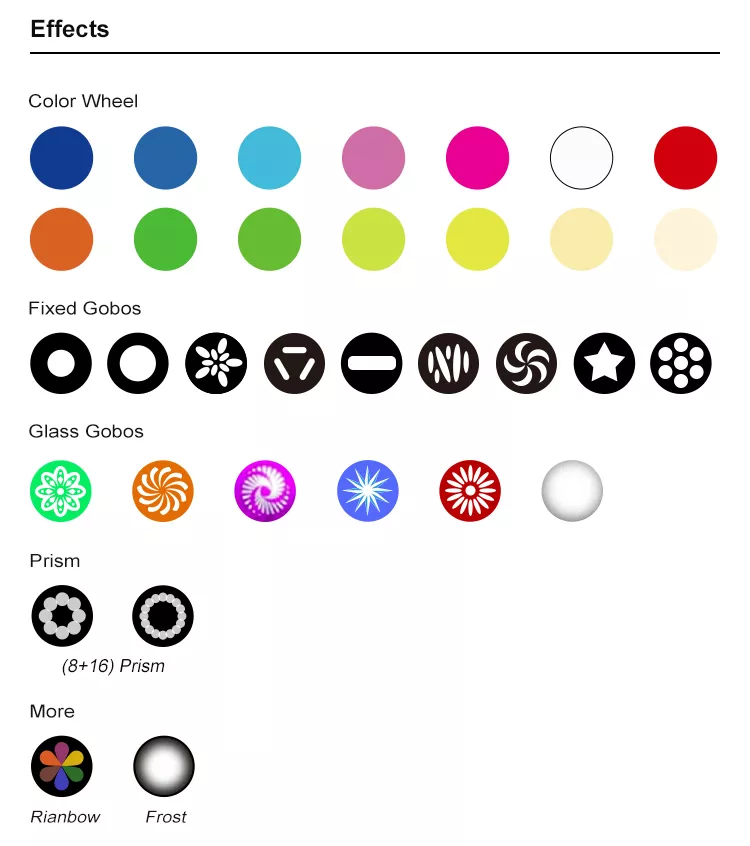

Color wheel: 14 colors + open, and rainbow effect
Gobo wheel: 14 gobos(8 fixed gobos + 5 glass gobos + open)
Effect Wheel: 8-facet prism/(8+16)-facet prism
0-100% mechanical dimming, mechanical dimming and free dimming available
Strobe macro control available
Lens optical system alchemical force , beam angle 0~4°
Over-heat protection
Power Input: 100-240V, 50/60Hz
Power Dissipation: 400W
IP level :IP20
Magnetic ballast and AC/Dc power supply
Product Size：310×230×500mm(for reference only)
Net weight：14.5KG
