Product Short information

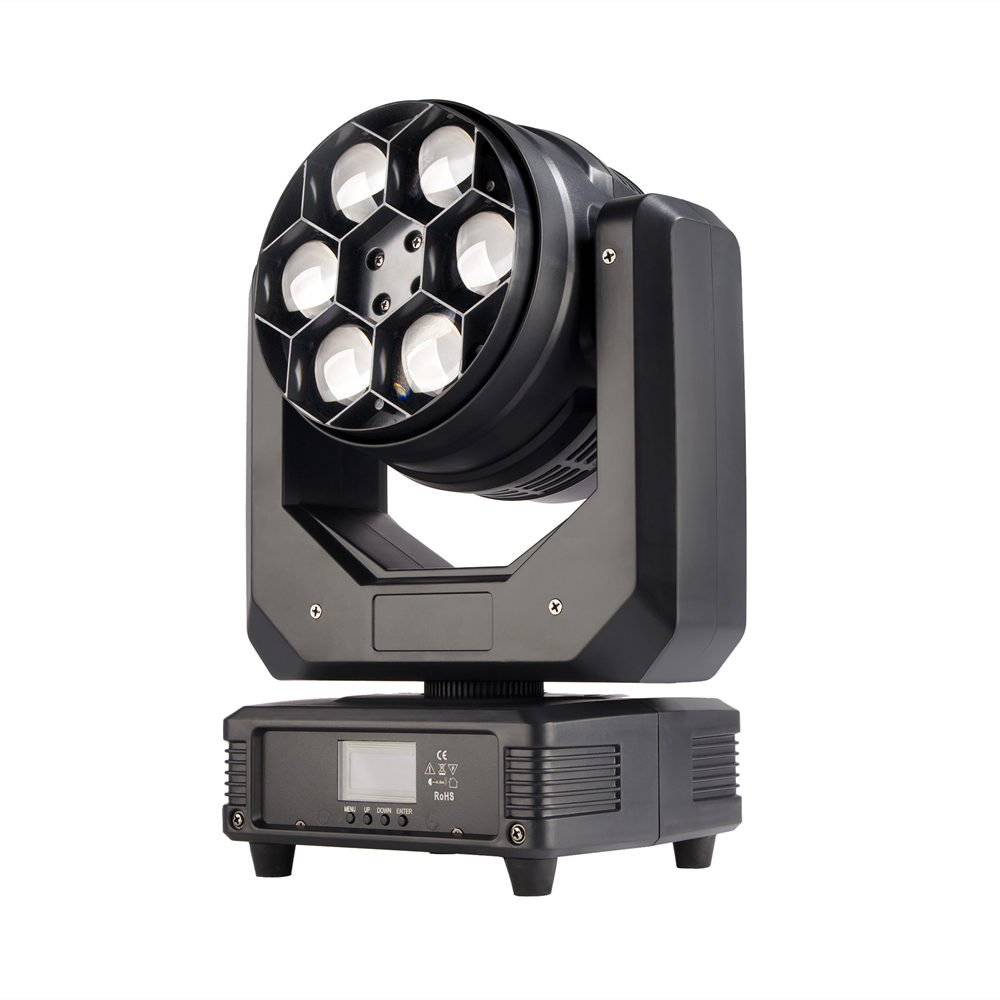

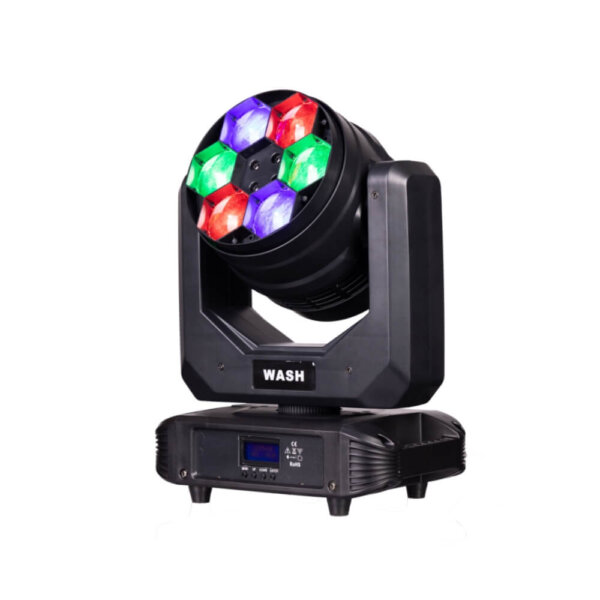

LED 6*40W Beam Wash Zoom Moving Head Lights, Suitable for concerts, theaters, bars, auditoriums, banquet halls, rental
Technical Specifications
| Light Sources | Â 6x 40W 4IN1 RGBW LED |
| Beam Angle |  3.5°~ 45° |
| Power Consumption | Â 220W |
| Power Voltage | Â AC 100-240V, 50/60Hz |
| Dimension |  258mm×178mm×334mm |
| Net Weight | Â 6Kgs |
| Carton package 1in1 size | 31*23*42cm Gross weight：7Kgs |
| Carton package 4in1 size |  65.5*49.5*44.5 cm Gross weight：28.5Kgs |
| Control | |
| DMX Channel | Â 21/24/32/56 Channel |
| Control Modes | Â DMX512/mater-Slave/Auto Run/Music/RDM |
| Pan/Tilt | |
| Pan/Tilt |  540°/ 270° |
| Pan/Tilt Resolution | Â 8/16 bit |
| Construction | |
| Display | Â LCD Display |

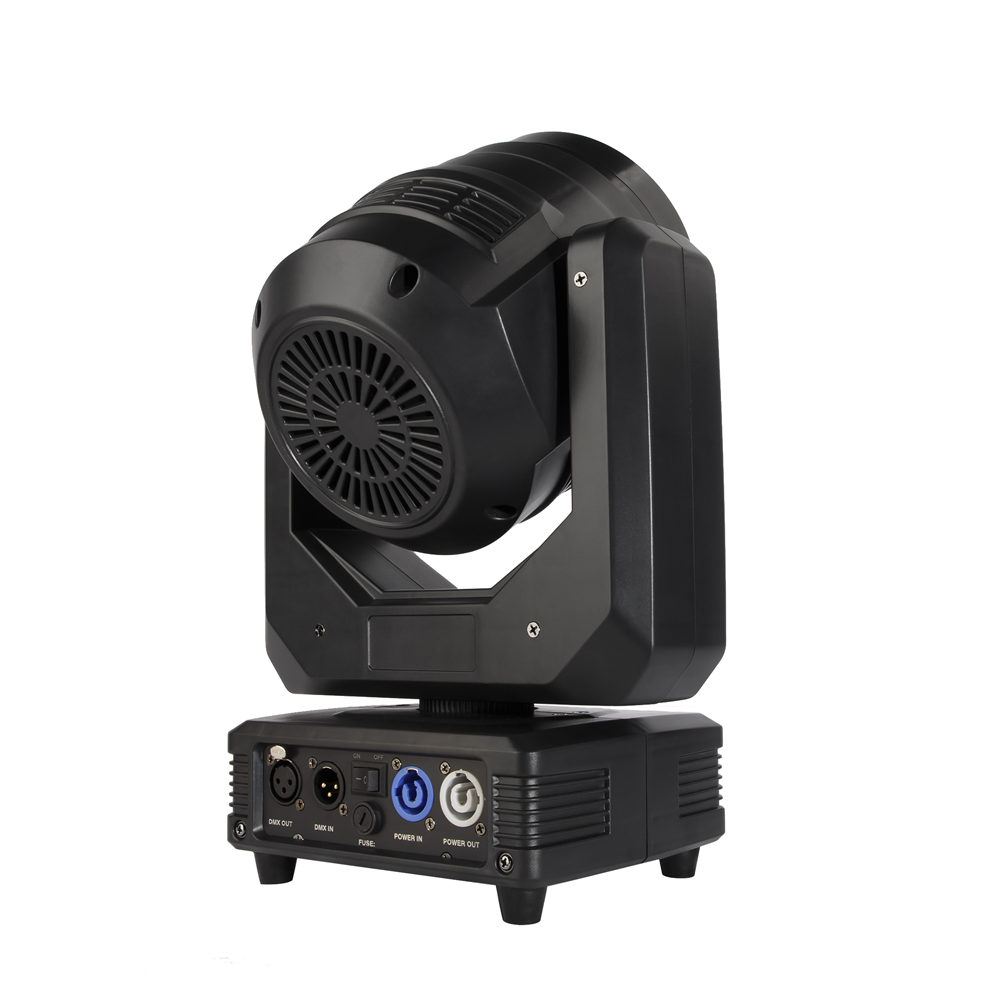

| Data In/Out socket | Â 3-pin XLR sockets |
| Power Socket | Â Powercon in/out |
| Protection Rating | Â IP20 |
| Features | |
| Motorized liner zoom system, zoom range |  3.5°~45° |
| Pixels control | |
| Outstanding color macro effect | |
| Dimmer | Â 0~100% smooth dimming |
Accessories
Power Cable *1, DMX Cable *1, Quick Lock *1, Manual *1, Safety Cable *1
Exhibition
Lighting Factory
Manual
| Item | Download |
|---|---|
| User Manual |  Manual of JT-D640F |
Library
| Item | Download |
|---|---|
| R20 21CH |  BO-640B-21CH |
| R20 24CH | BO-640B-24CH |
| R20 32CH | BO-640B-32CH |
| D4 32CH | BO_640-24CH |
| D4 49CH | BO_640 |
| MA 21CH | bo_light@bo-640b@mode_1_21ch |
| MA 24CH | bo_light@bo-640b@mode_2_24ch |
| MA 56CH | bo_light@bo-640b@mode_4__56ch |
